The core features and usage norms of gear couplings

Gear couplings are key components widely used in mechanical transmission systems. They transmit torque through the meshing of gear pairs and play a significant role in heavy-load and high-precision transmission scenarios due to their unique structural design. The following is a detailed introduction to its core features and usage precautions.

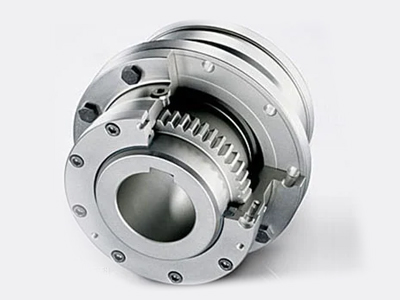

Figure: Schematic diagram of the structure of the gear coupling and the meshing of gears

I. Analysis of Core Features

Ii. Precautions for Use

• Precise alignment installation: During installation, the coaxiality and parallelism deviations of the two end axes must be strictly controlled. Exceeding the allowable range will cause additional torque, accelerating gear wear and bearing damage.

• Scientific lubrication management: Regularly add dedicated gear lubricants to maintain the formation of an effective oil film on the tooth surface, but the dosage should be controlled to avoid excessive use, which may cause eddy current loss or oil leakage contamination.

• Reasonable parameter selection: Based on the actual transmission power, speed and working conditions, choose the matching nominal torque and specification model to avoid "a small horse pulling a big cart" or over-selection.

• Regular inspection and maintenance: Periodically check the lubrication status, the degree of tooth surface wear, axial clearance and fastening condition. Timely deal with defects such as pitting and adhesion found.

• Overloading operation is strictly prohibited: Strictly control the actual load within the rated torque range to avoid short-term overloading or long-term full-load operation, which may cause plastic deformation of the tooth surface.

• Avoid frequent reverse rotation: Unless permitted by design, sudden reverse rotation operations should be reduced to prevent the tooth surface from being subjected to impact loads and causing early fatigue damage.

• Temperature monitoring and protection: Ensure that the working environment temperature is within the allowable range. In high-temperature environments, enhanced heat dissipation measures should be taken to prevent the failure of lubricants and the decline in material performance.

• Reduce vibration and shock: Take vibration reduction measures to lower external vibration interference and avoid damage to the gear meshing surface caused by frequent starts and stops or impact loads.
