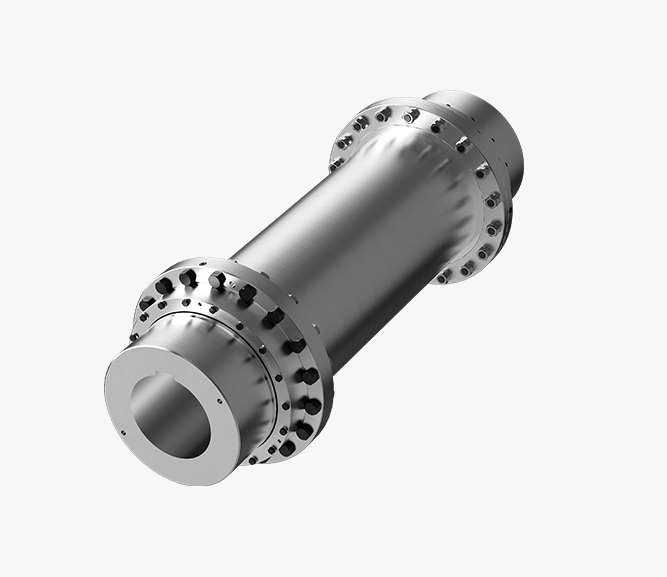

Drum Gear Coupling - Product Details

The "Drum Gear Coupling" systematically and comprehensively expounds the core technologies and research achievements of the drum gear coupling, covering key areas such as spatial meshing theory, transmission mechanical characteristics, parameter optimization design, experimental verification, and manufacturing technology, providing authoritative and practical technical references for industry applications.

•

Analysis of core technical content

1

In-depth research on meshing mechanism

For the two mainstream structures of drum gear couplings, namely the conjugate tooth surface and the non-conjugate tooth surface, the meshing mechanism and mechanical properties are deeply analyzed to reveal the influence laws of different tooth surface structures on transmission performance.

2

Quantitative analysis of transmission characteristics

The focused conjugate tooth surface drum gear coupling conducts precise quantitative analysis on key transmission parameters such as meshing overlap, tooth surface induced normal curvature, relative sliding rate, and lubricating oil film formation Angle, providing data support for performance optimization.

3

Parameter optimization design scheme

Innovatively, a design scheme for the drum degree curve of the drum-shaped gear and the optimization of gear parameters was proposed. Through scientific parameter matching, the load-bearing capacity, transmission efficiency and service life of the coupling were enhanced.

Highlights of experimental and manufacturing technology

A

Experimental method system

This paper systematically introduces various test methods for drum gear couplings, with a focus on elaborating the multi-tooth contact test and the inter-tooth load distribution test, providing a standardized process for product performance verification.

B

High-efficiency manufacturing technology

This article particularly introduces the successfully developed numerical control transformation technology for ordinary gear hobbing machine processing. This technology features economic efficiency and can achieve precise processing of drum gears without large-scale equipment investment. It fully meets the current manufacturing demands of domestic drum gear couplings and has extremely high promotion and application value.

This book combines theoretical depth with practical guidance, providing a complete technical solution for the design optimization, performance improvement and industrial production of drum gear couplings. It is suitable for engineering and technical personnel engaged in mechanical transmission design, manufacturing and application to refer to and use.
